D44 M210 ADVANTEC TRUSS AND C2 END FORGING AXLE KIT FOR JL/JT

EVO MFG D44 M210 ADVANTEC Truss and C2 End Forging Axle Kit for JL/JT



Off-road abuse can put immense stress on your Jeep's front axle, leading to bent axle housings, damaged C-forgings, and expensive repairs. The EVO MFG D44 M210 ADVANTEC Truss and C2 End Forging Axle Kit is your ultimate insurance policy, designed to reinforce and protect the most vulnerable parts of your front axle.

This comprehensive kit provides a massive increase in strength, allowing you to push your Jeep to its limits without fear of failure.

---



Key Features & Benefits



• Complete Axle Reinforcement: This kit is an all-in-one solution that strengthens both the main axle housing and the C-forgings, which are notorious weak points on the JL/JT Dana 44 M210 front axle.

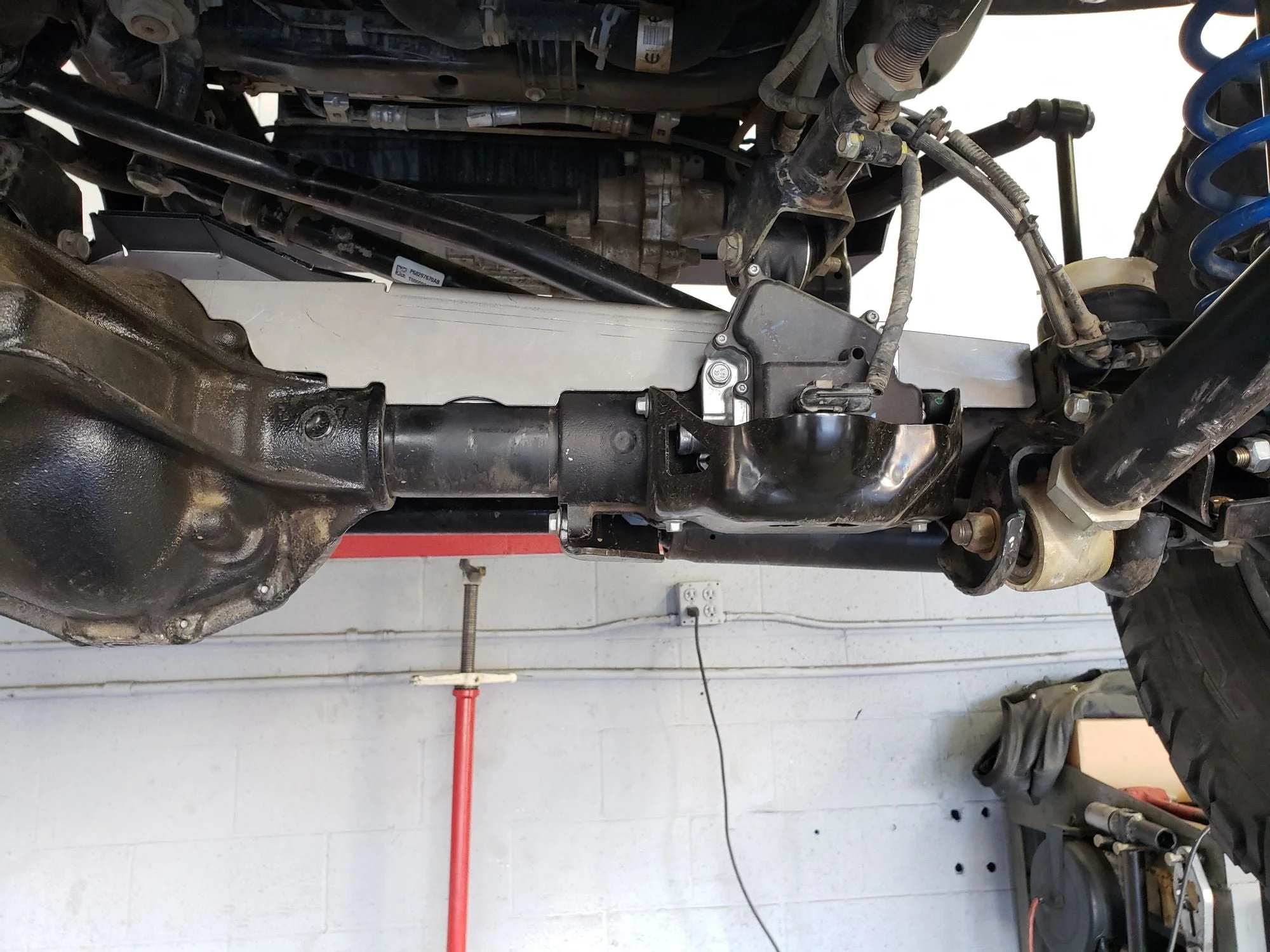

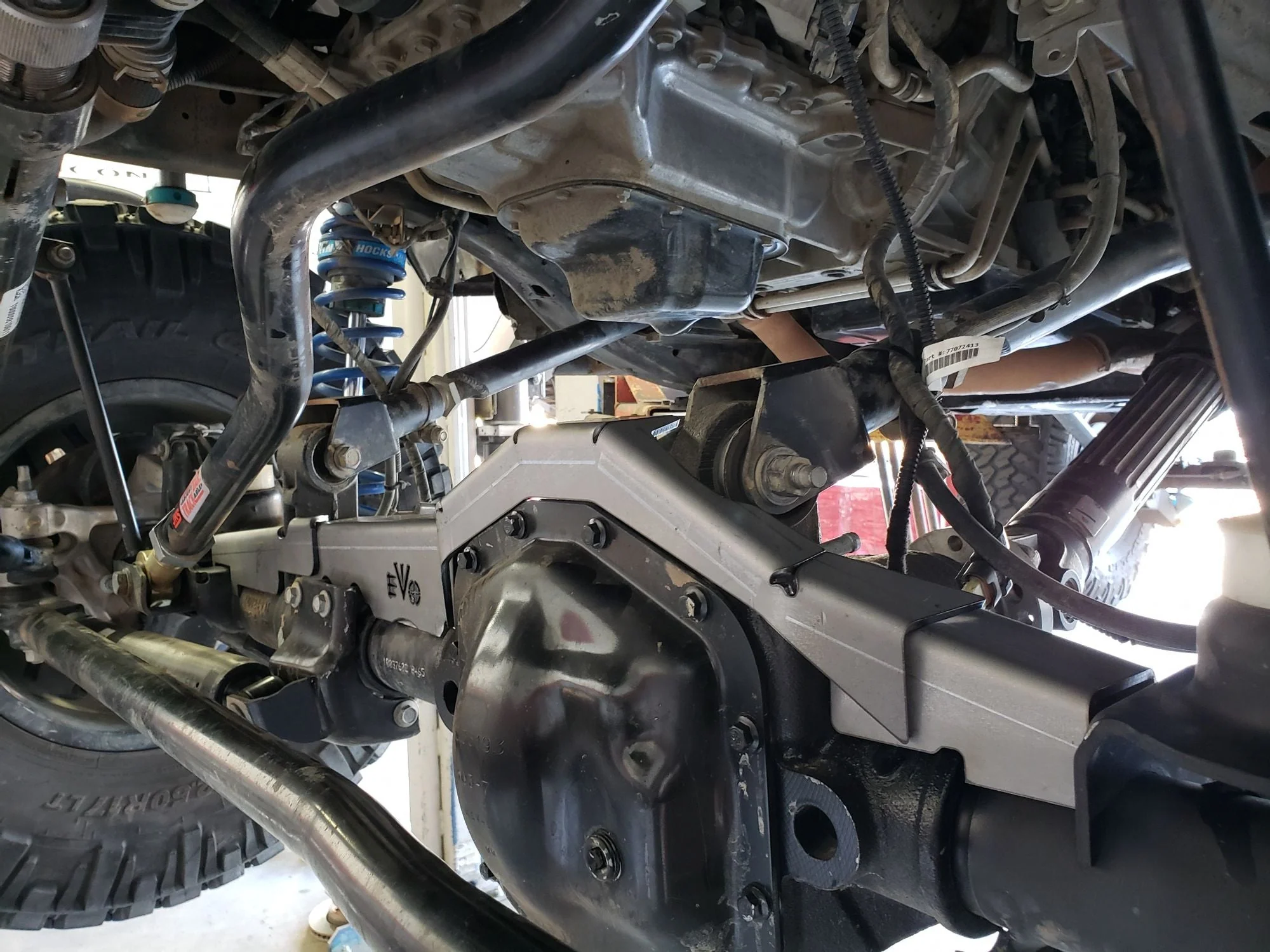

• ProTek Front Axle Truss: The included truss is a one-piece, end-to-end system made from blend of 3/16" and 1/4-inch laser-cut and CNC-formed steel. It spans the entire axle, from left to right, to prevent deflection and reinforce the brittle FAD/CAD casting (Front Axle Disconnect).

• C2 End Forging Gussets: The C2 gussets are made from 3/16-inch laser-cut steel and are designed to "backbone" the upper and lower C-forgings. This prevents them from bending or breaking, keeping your alignment in check under heavy loads from large tires and hard landings.

• Precision Engineering: Manufactured with CNC press brake forming, this kit minimizes excess heat and welding, which reduces the chance of warping the axle during installation. This makes for an easier, more accurate, and stronger final product.

• Direct Fit Design: The kit is a direct fit for the Dana 44 M210 front axle on both the Jeep Wrangler JL and Gladiator JT Rubicon models. The C2 gussets are also compatible with the Dana 30 M186 axle found on Sahara/Sport models.

• Includes Everything You Need: The kit comes complete with the axle truss, C2 gussets, and wiring retainers for a clean and professional installation.

---



Important Installation Note



• Welding Required: This is a weld-on kit that requires welding and fabrication skills for proper installation. Welding should only be performed by a competent and experienced welder.
